8303 Handheld Particle Counter
Easy to configure, this instrument displays up to 3 user-selectable size channels as well as (optional) temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports. Export to Particles Plus data-software. The 8303 mass concentration mode approximates density in μg/m³ and allows for density and refractive index corrections to ensure accuracy. All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8303 ensures compliance with an on-board pulse height analyzer.
- Brand: Particles Plus
- Size Range: 0.3 to 25 μm
- Flow Rate: 0.1 CFM (2.83 LPM)
- Key Features: Measures 3 channels of simultaneous data, Only 2.2 lb, Stores up to 45,000 sample records
- Complies with ISO 21501-4 and JIS B9921 standards
- Includes: Quick start guide, operating manual on USB flash drive, isokinetic probe, purge filter, battery, data download software, USB cable, power supply & cable
New FLOW Rewards!
\nFLOW Cleanrooms & Supply is excited to announce our new loyalty rewards program
","device_type":"all","background_type":"image","background_style":"auto","background_position":"center-top","parallax_speed":0.5,"mouse_parallax_size":30,"mouse_parallax_speed":10000,"lg_background_type":"image","lg_background_style":"auto","lg_background_position":"center-top","md_background_type":"image","md_background_style":"auto","md_background_position":"center-top","sm_background_type":"image","sm_background_style":"auto","sm_background_position":"center-top","xs_background_type":"image","xs_background_style":"auto","xs_background_position":"center-top","type":"text","id":"s3pineo"},{"title":"Learn More","icon_position":"left","device_type":"all","background_type":"image","background_style":"auto","background_position":"center-top","parallax_speed":0.5,"mouse_parallax_size":30,"mouse_parallax_speed":10000,"lg_background_type":"image","lg_background_style":"auto","lg_background_position":"center-top","md_background_type":"image","md_background_style":"auto","md_background_position":"center-top","sm_background_type":"image","sm_background_style":"auto","sm_background_position":"center-top","xs_background_type":"image","xs_background_style":"auto","xs_background_position":"center-top","button_style":"flat","button_size":"md","gradient_color_1":"#dd3333","gradient_color_2":"#eeee22","box_shadow_color":"#cccccc","button_border_style":"solid","type":"button","id":"rpt0ua9","link":"{{mgzlink type=\"page\" url=\"\" id=\"39\" title=\"Rewards Program\" extra=\"\" nofollow=0 blank=0}}"}],"align":"left","border_top_left_radius":"14","border_top_right_radius":"14","border_bottom_left_radius":"14","border_bottom_right_radius":"14","min_height":"350px","background_image":"wysiwyg/rewards-banner-wide.jpg","padding_top":"30px","padding_left":"30px","padding_right":"30px","margin_bottom":"","xs_min_height":"430px","xs_background_image":"wysiwyg/rewards-banner-wide.jpg","lg_background_image":"wysiwyg/rewards-banner-wide.jpg","lg_min_height":"460px"}]}],"gap":0,"equal_height":true,"max_width":718,"margin_bottom":"60px","el_inner_class":""}],"pid":"gtoatky6iroj"}[/mgz_pagebuilder]

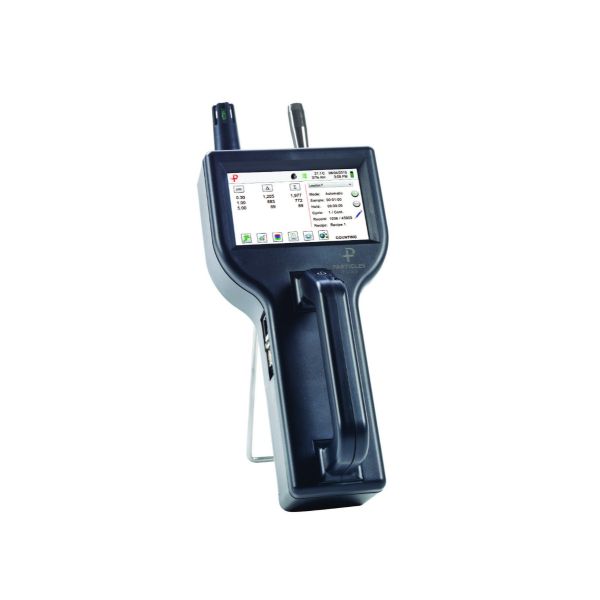

Particles Plus Handheld Airborne Particle Counter - Model 8303
Easy to configure, this instrument displays up to 3 user-selectable size channels as well as (optional) temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports. Export to Particles Plus data-software. The 8303 mass concentration mode approximates density in μg/m³ and allows for density and refractive index corrections to ensure accuracy. All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8303 ensures compliance with an on-board pulse height analyzer.
Purchase of the Particles Plus 8303 includes:
8303 Handheld Particle Counter
Quick start guide
Operating manual on USB flash drive
Isokinetic probe
Purge filter
Battery
Data download software
USB cable
Power supply & cable
Features & Benefits of Airy Technology 8303:
8303 Measures 0.3 μm to 25.0 μm
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 3 channels of simultaneous data
Approximates mass concentration in μg/m³ with density and refractive index corrections
Integrated handle for one-handed operation
Large easy-to-use icon-driven color touch screen display
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
Annotation function allows user to save 32 character notations to a sample record
Real-Time Meter for detecting particle contamination sources
Easy configuration and transferable from instrument to instrument
Connect using USB or (optional) Ethernet, Wireless 802.11 b/g
Displays reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
Internal audible alarm
User-definable reports
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Seamless integration into a facility monitoring system
Lightweight high-impact injection-molded plastic enclosure
1-year warranty. Extended warranties available
Optional Features & Benefits:
Temperature and relative humidity probe
Ethernet, Wireless 802.11 b/g, RS485 or RS232 output
Additional 3 size channels
External printer
Specifications of Particles Plus 8303:
Size Range: 0.3 to 25 μm
Channel Sizes: Factory calibrated at 0.3, 0.5, 1.0, μm
Counting Efficiency: 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Concentration Limit: 10,000,000 Particles/ft³ @ 10% coincidence loss
Light Source: Long Life Laser Diode
Zero Count Level: <1 count / 5 minutes (<2 particles/ft³) (per ISO 21501-4 & JIS)
Flow Rate: 0.1 CFM (2.83 LPM)
Calibration: NIST traceable
Sampling Time: 1 second to 99 hours
Sample Locations: Up to 1,000 locations 20 characters long
Vacuum Source: Internal pump with automatic flow control
Communication Modes: USB
Alarm: Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
Display: 4.3" (10.9 cm) WQVGA (480x272) color touch screen
Power: 110 to 240 VAC 50/60 Hz universal in-line power supply
Battery: Removable Li-ion
Dimensions (L x W x H): 10” x 5” x 4.5” (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes
Weight: 2.2 lb (1.0 kg)
Standards: ISO 21501-4 and JIS B9921
Warranty: 1 Year. Extended warranties available
Operating Conditions: 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions: 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Accessories: Quick start guide, operating manual on USB flash drive, isokinetic probe, purge filter, battery, data download software, USB cable, power supply & cable
Optional Accessories: Printed manual, carrying case, spare battery, external battery charger, external printer, isokinetic probes and temperature relative humidity sensor
