H306 Handheld Partical Counter
Airy Technology's Handheld Particle Counter offers the cleanroom excellent quality and reliable performance, the H306 model is ideal for use in cleanrooms, industrial health & safety, and air quality applications. One of the most economical devices with a color display that displays up to 6 user-selectable size channels as well as optional temperature and relative humidity. You can view data on screen or via printer, real-time through its versatile output options, or export to Instrument Management Software (IMS). Airy Technology counters can be controlled and monitored remotely via a web browser.
- Brand: Airy Technology
- Size Range: Measures 0.3 to 25.0 μm
- Flow Rate: 0.1 CFM (2.83 LPM)
- Key Features: Measures 6 channels of simultaneous data, Only 2.2 lb, Stores up to 45,000 sample records
- Complies with ISO 21501-4 and JIS B9921 standards
- Includes: Operating manual and IMS software on USB flash drive, isokinetic probe, purge filter, battery, data download software, USB cable, power supply & cable
New FLOW Rewards!
\nFLOW Cleanrooms & Supply is excited to announce our new loyalty rewards program
","device_type":"all","background_type":"image","background_style":"auto","background_position":"center-top","parallax_speed":0.5,"mouse_parallax_size":30,"mouse_parallax_speed":10000,"lg_background_type":"image","lg_background_style":"auto","lg_background_position":"center-top","md_background_type":"image","md_background_style":"auto","md_background_position":"center-top","sm_background_type":"image","sm_background_style":"auto","sm_background_position":"center-top","xs_background_type":"image","xs_background_style":"auto","xs_background_position":"center-top","type":"text","id":"s3pineo"},{"title":"Learn More","icon_position":"left","device_type":"all","background_type":"image","background_style":"auto","background_position":"center-top","parallax_speed":0.5,"mouse_parallax_size":30,"mouse_parallax_speed":10000,"lg_background_type":"image","lg_background_style":"auto","lg_background_position":"center-top","md_background_type":"image","md_background_style":"auto","md_background_position":"center-top","sm_background_type":"image","sm_background_style":"auto","sm_background_position":"center-top","xs_background_type":"image","xs_background_style":"auto","xs_background_position":"center-top","button_style":"flat","button_size":"md","gradient_color_1":"#dd3333","gradient_color_2":"#eeee22","box_shadow_color":"#cccccc","button_border_style":"solid","type":"button","id":"rpt0ua9","link":"{{mgzlink type=\"page\" url=\"\" id=\"39\" title=\"Rewards Program\" extra=\"\" nofollow=0 blank=0}}"}],"align":"left","border_top_left_radius":"14","border_top_right_radius":"14","border_bottom_left_radius":"14","border_bottom_right_radius":"14","min_height":"350px","background_image":"wysiwyg/rewards-banner-wide.jpg","padding_top":"30px","padding_left":"30px","padding_right":"30px","margin_bottom":"","xs_min_height":"430px","xs_background_image":"wysiwyg/rewards-banner-wide.jpg","lg_background_image":"wysiwyg/rewards-banner-wide.jpg","lg_min_height":"460px"}]}],"gap":0,"equal_height":true,"max_width":718,"margin_bottom":"60px","el_inner_class":""}],"pid":"gtoatky6iroj"}[/mgz_pagebuilder]

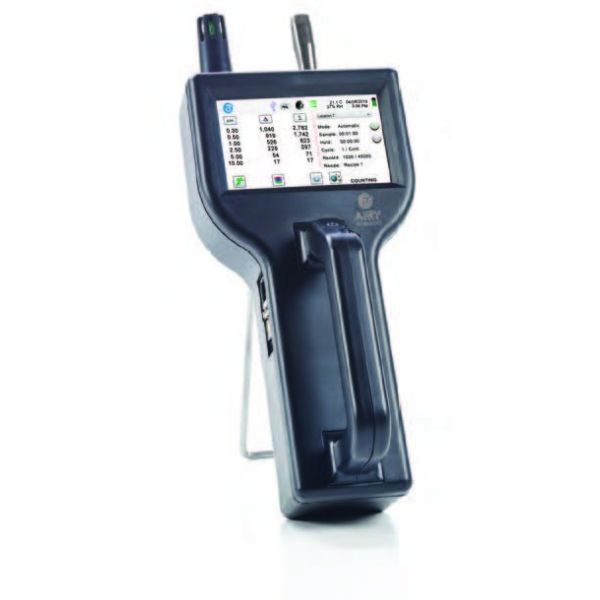

Airy Technology Handheld Particle Counter - Model H306
Airy Technology's Handheld Particle Counter offers the cleanroom excellent quality and reliable performance, the H306 model is ideal for use in cleanrooms, industrial health & safety, and air quality applications. One of the most economical devices with a color display that displays up to 6 user-selectable size channels as well as optional temperature and relative humidity. You can view data on screen or via printer, real-time through its versatile output options, or export to Instrument Management Software (IMS). Airy Technology counters can be controlled and monitored remotely via a web browser.
Purchase of the Airy Technology H306 includes:
H306 Handheld Particle Counter
Operating manual and IMS software on USB Flash Drive
Isokinetic probe
Purge filter
Battery
Data download software
USB cable
Power supply & cable
Features & Benefits of Airy Technology H306:
Measures 0.3 to 25.0 μm
0.1 CFM (2.83 LPM) flow rate
Long life laser diode technology
Measures up to 6 channels of simultaneous data
Integrated handle for one-handed operation
Large easy-to-use icon-driven color touch screen display
Optional temperature and relative humidity probe available
Stores up to 45,000 sample records and 1,000 sample locations
Remote diagnostics allows for remote service investigation through the Internet
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS 485, or RS232
Internal audible alarm with comprehensive alarm management
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Seamless integration into a facility monitoring system
Lightweight high-impact injection-molded plastic enclosure
1 year warranty. Extended warranties available through Airy
Specifications of Airy Technology H306:
Size Range: 0.3 to 25.0 μm
Channel Sizes: Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning
Counting Efficiency: 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Concentration Limit: 15,000,000 Particles/ft³ @ 10% coincidence loss
Light Source: Long Life Laser Diode
Zero Count Level: <1 count / 5 minutes (<2 particles/ft³) (per ISO 21501-4 & JIS)
Flow Rate: 0.1 CFM (2.83 LPM)
Calibration: NIST traceable
Sampling Time: 1 second to 99 hours
Sample Locations: Up to 1,000 locations 20 characters long
Vacuum Source: Internal pump with automatic flow control
Communication Modes: Ethernet and USB
Alarm: Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
Display: 4.3" (10.9 cm) WQVGA (480x272) color touch screen
Power: DC 5V 1A (Mini USB TYPE-B)
Battery: 110 to 240 VAC 50/60 Hz universal in-line power supply
Environmental Sensor: Optional temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity
Dimensions (L x W x H): 10” x 5” x 4.5” (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes
Weight: 2.2 lb (1.0 kg)
Standards: ISO 21501-4 and JIS B9921
Warranty: 1 Year. Extended warranties available
Operating Conditions: 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions: 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Accessories: Operating manual and IMS software on USB flash drive, isokinetic probe, purge filter, battery, data download software, USB cable, power supply & cable
Optional Accessories: Printed manual, carrying case, spare battery, external battery charger, external printer, temperature relative humidity sensor, and isokinetic probes
